Polarimeters

Applications

  • Pharmaceutical

    • Determination of sugar as an ingredient of pharmaceutical agents
    • Purity control and content determination
    • Determination of the stereochemical composition and mutarotation
    • Characterization of new synthetic substances

  • Chemical

    • Concentration determination and purity control
    • Monitoring of chemical processes during production of optically active substances
    • Reaction kinetic analysis

  • Fragrances and Essential Oils

    • Quality Control of Raw Materials
    • Additives monitoring during production

  • Sugar Industry

    • Determination of sugar concentration in raw materials, preliminary, intermediate and end products
    • Monitoring of chemical processes such as the manufacture of invert sugars
    • Purity control

  • Food and Beverage

    • Characterization, quality and purity of raw materials and end products
    • Determination of sugar concentration in beverages and candies
    • Determination of sugar types and sugar degradation

Optical Polarimeters

Polarimeter instruments measure the angle of rotation of optically active substances. The measurement of the angle of rotation is an important quality control measurement and is commonly used in the pharmaceutical, chemical, cosmetic and food & beverage industries. Optical rotation measurement allows you to ascertain the identity and quality of substances as well as their concentration in mixtures. It can also indicate the progress of a reaction and conversions. For more information about optical rotation Polarimeter technology and applications, click here to visit the KRÜSS Optronic Campus.

Automatic & Manual Models

KRÜSS Optronic manufactures a variety of optical laboratory polarimeters to suit your needs, from industry and R&D to education. These include manual polarimeters, pharmaceutical polarimeters, sugar polarimeters, digital polarimeters, semi-automatic polarimeters and automatic polarimeters.

KRÜSS Optronic polarimeters offer a solution for any budget/application:

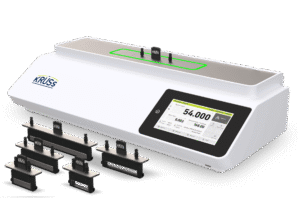

Polarimeter P9000 Series with Peltier Temperature Control

Exact filling, stable temperature conditions and constant measured values are crucial for precise and reasonable measurements. With the state-of-the art technology featured in the new P9000 Series, you can achieve maximum precision and make well-founded decisions based on reliable data. The KRÜSS Optronic ASSISTANCE SYSTEMS accompany you step-by-step.

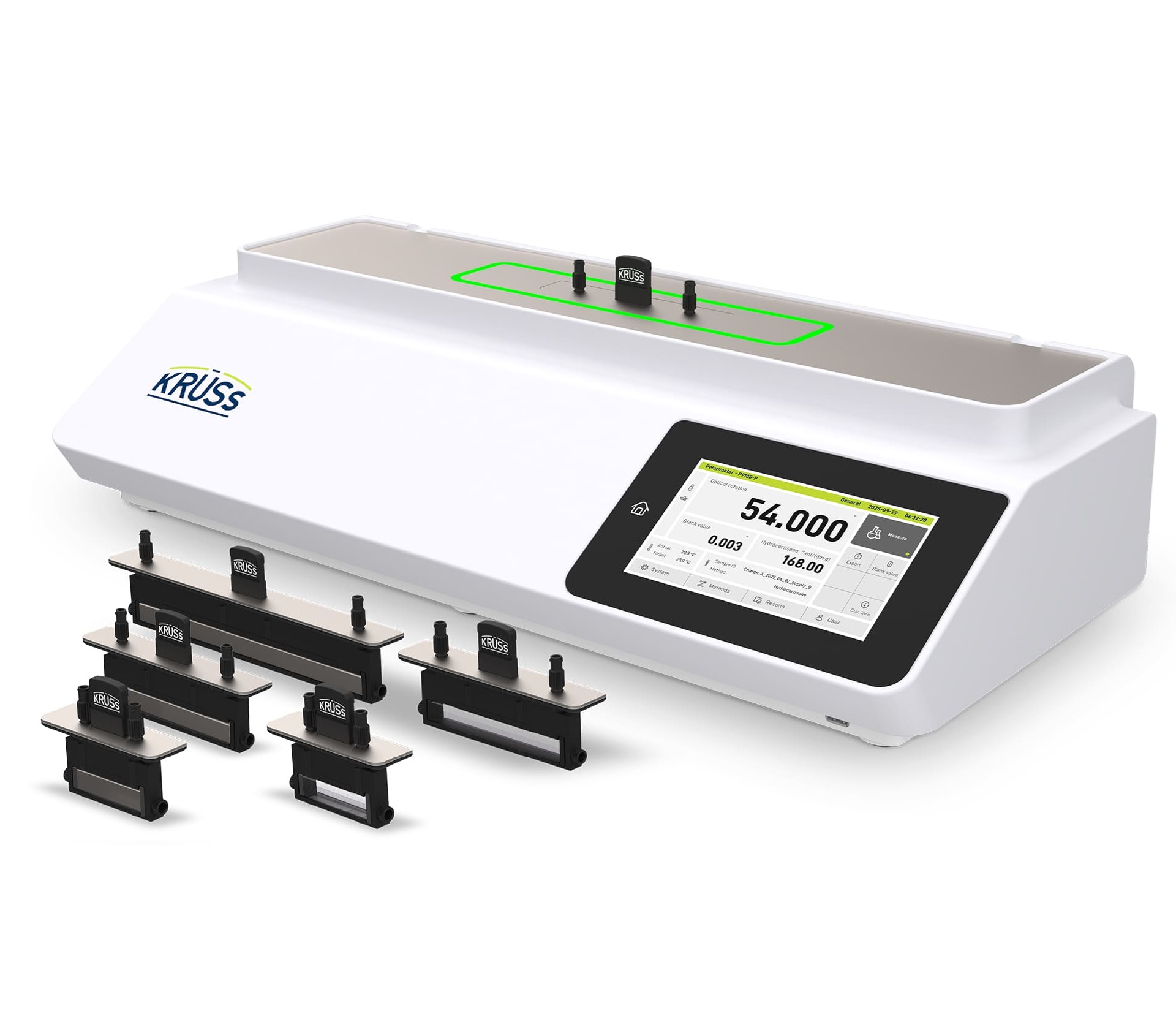

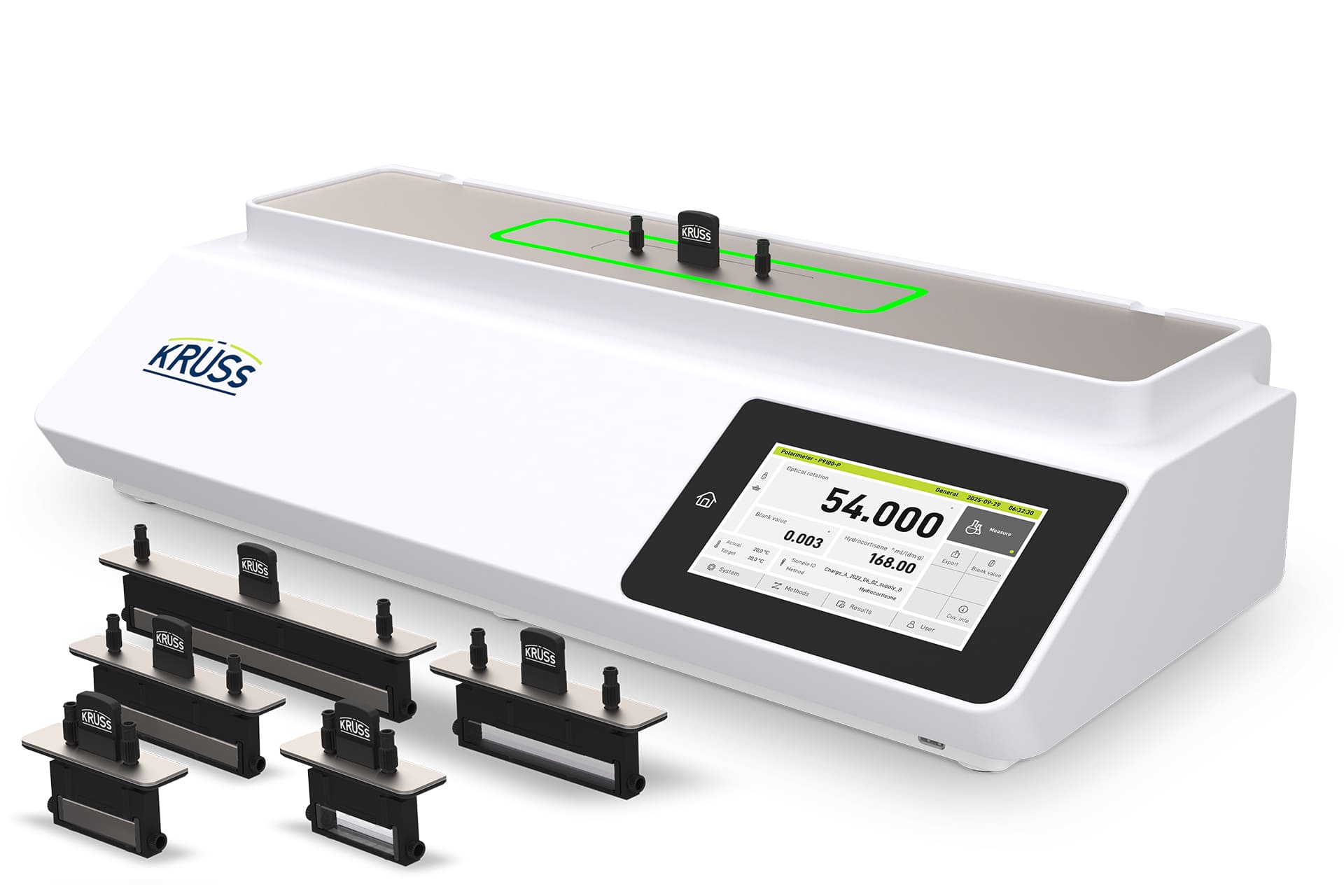

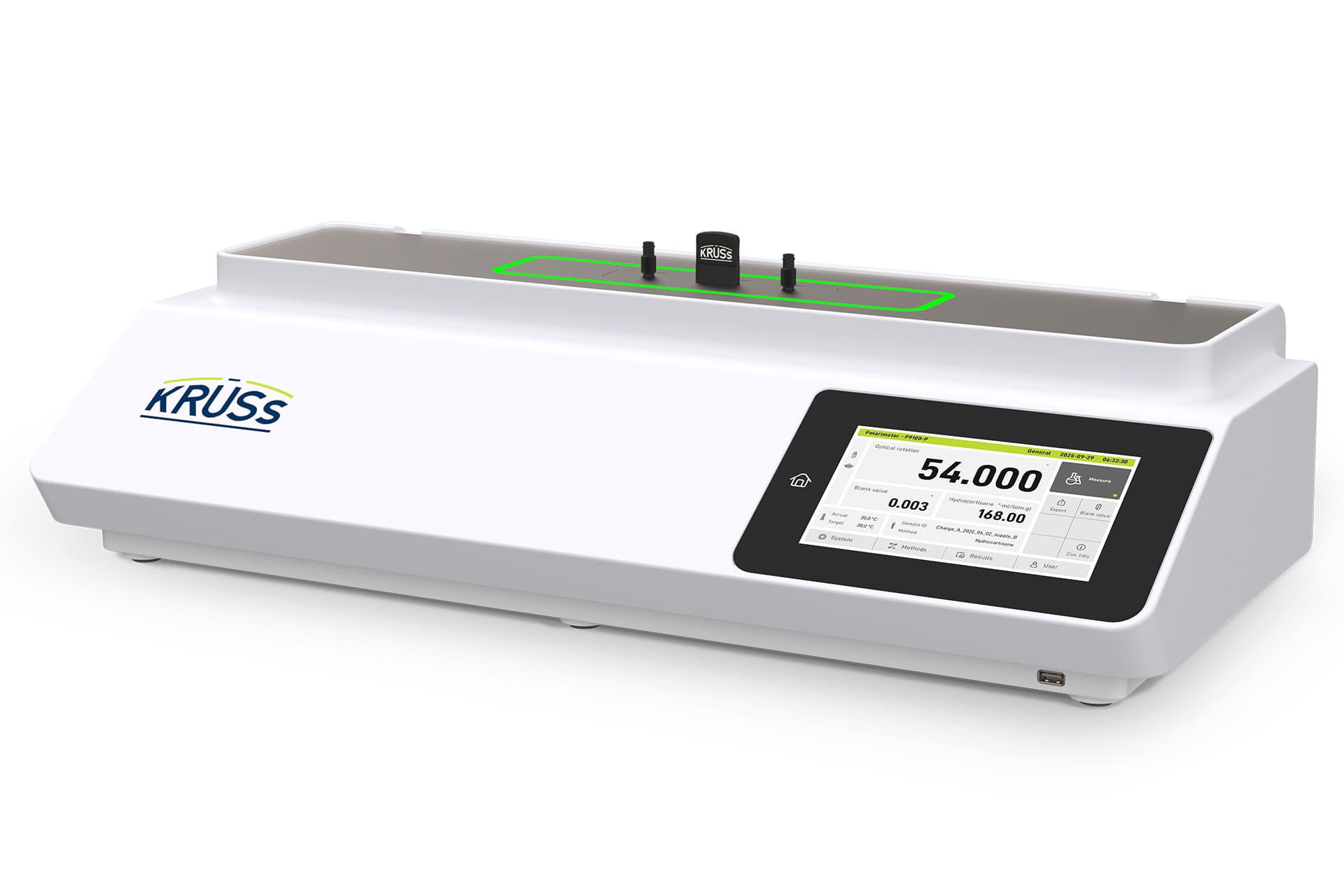

KRÜSS Optronic Polarimeter P9000 Series with Peltier temperature control
  • Measurement time of only 1 second!
  • Minimal Sample Volume – a volume of just 1.3 ml is sufficient using the 100mm long innovative cuvette design.

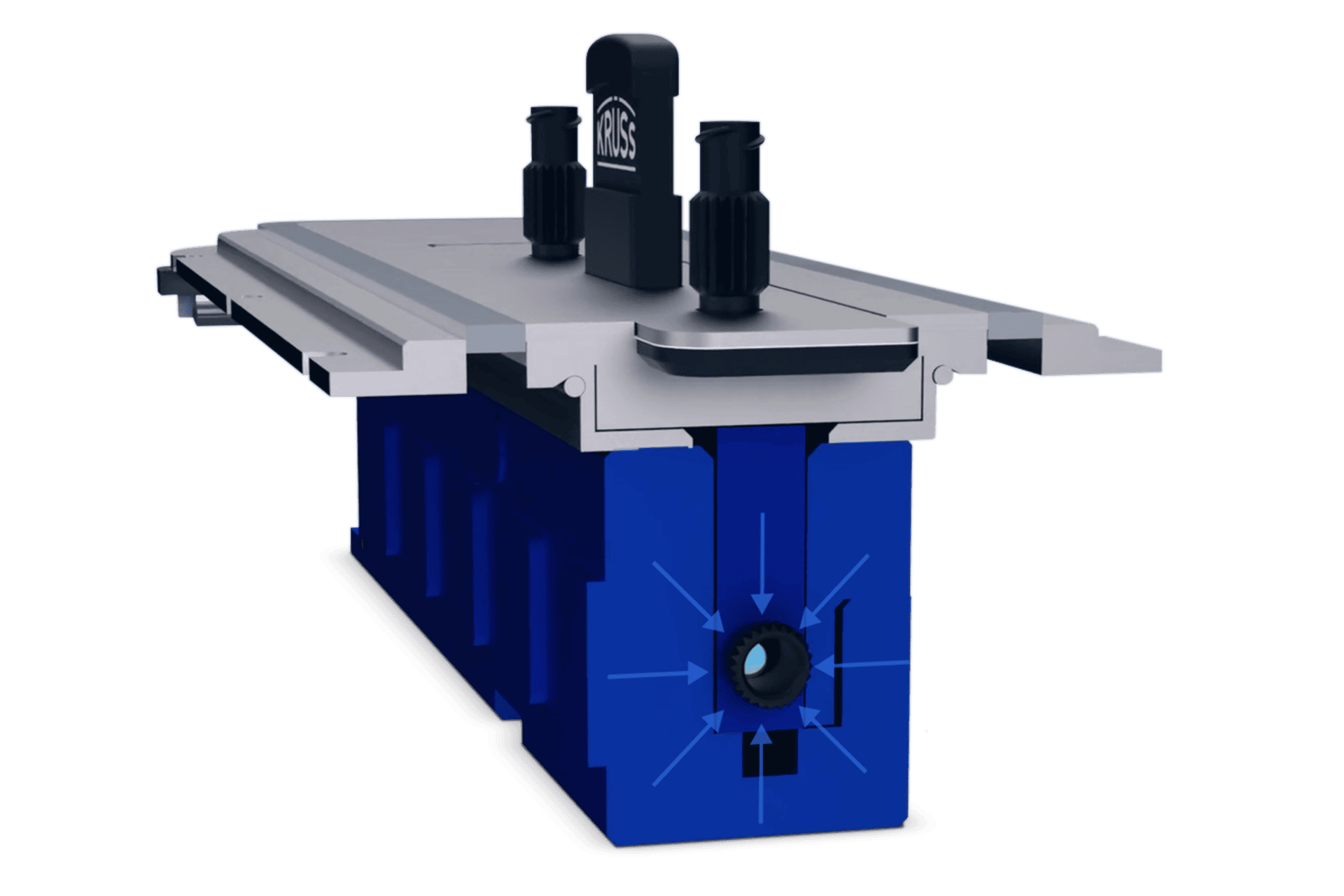

  • Intelligent Temperature Control of the Sample with continuous monitoring (TempGate®)
  • The system uses high performance LEDs with a lifetime of over 100,000 hours (wavelength 589nm)

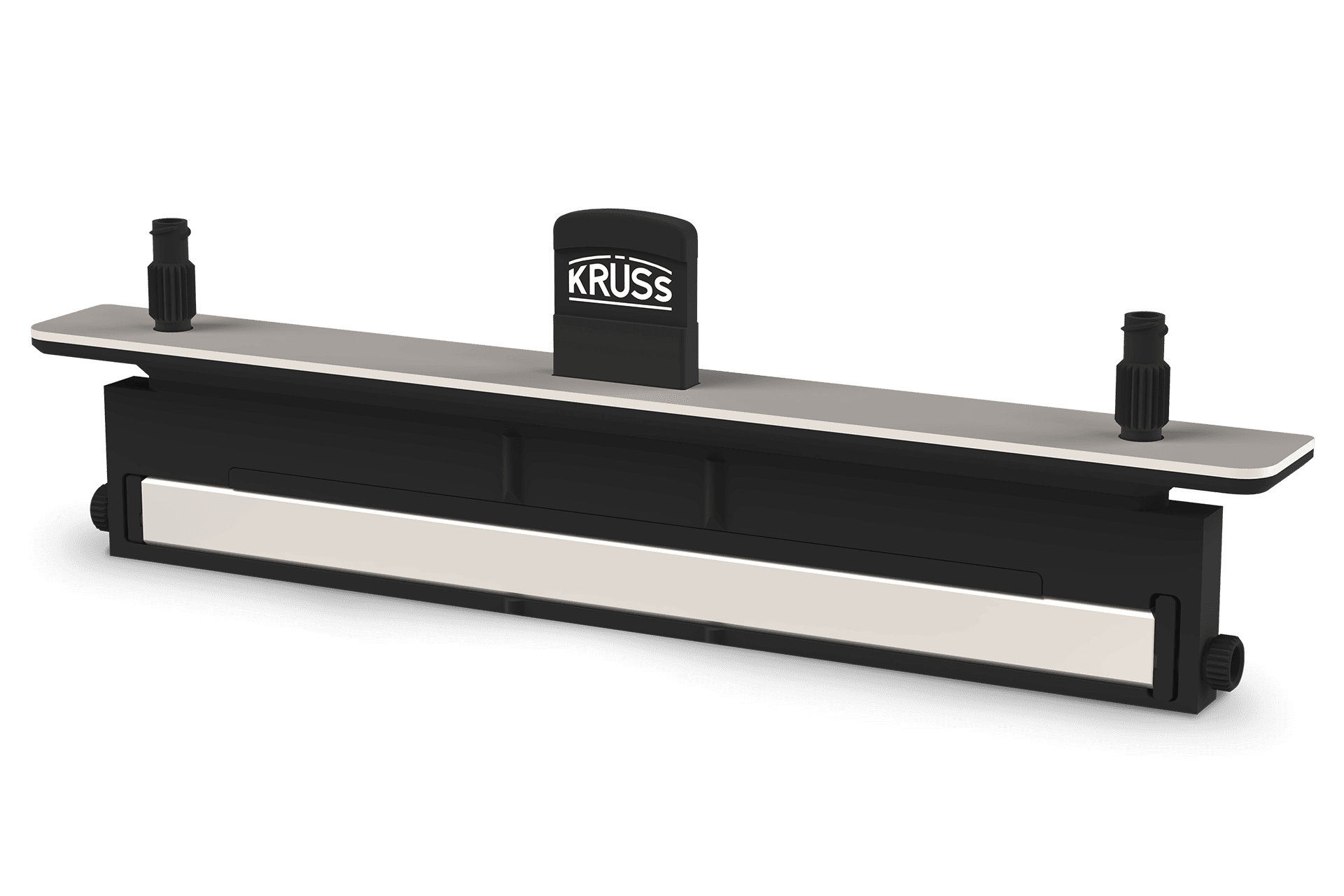

  • Modern cuvette design allows for visual control during the sample filling process

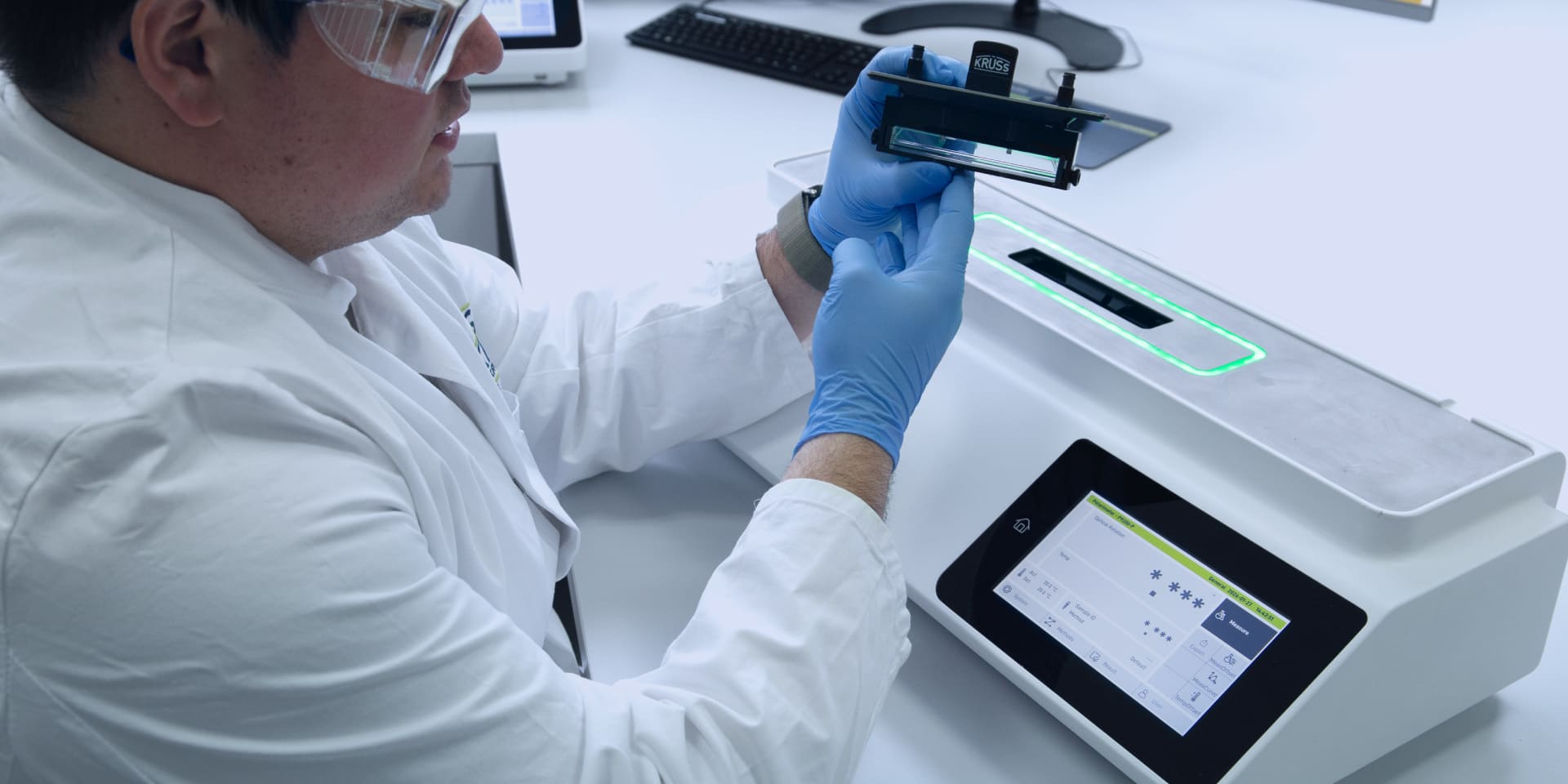

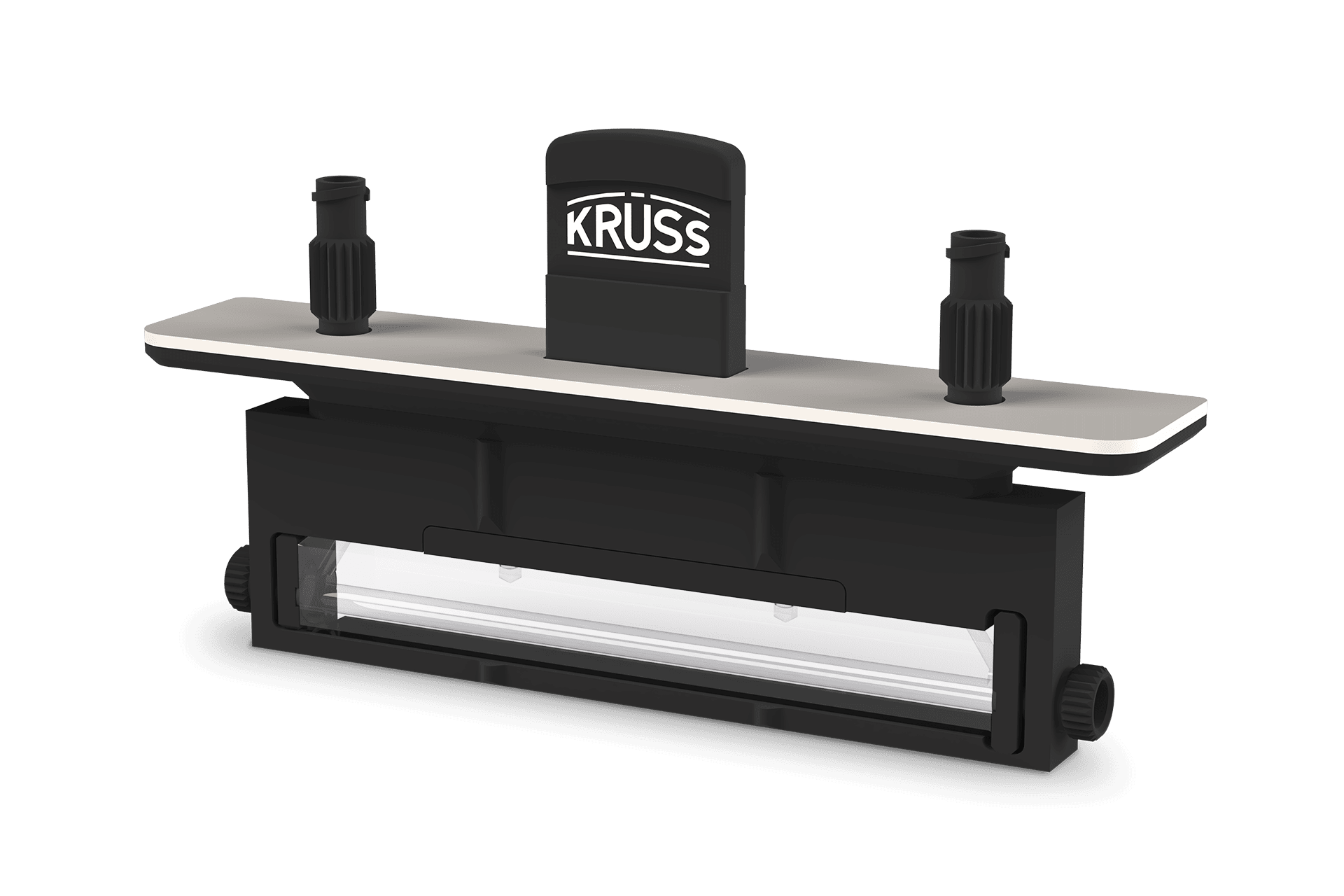

KRÜSS Optronic P9000 innovative cuvette design for visual fill control
  • Automatic Cuvette Recognition Option with an integrated camera (P-9200-P Model)

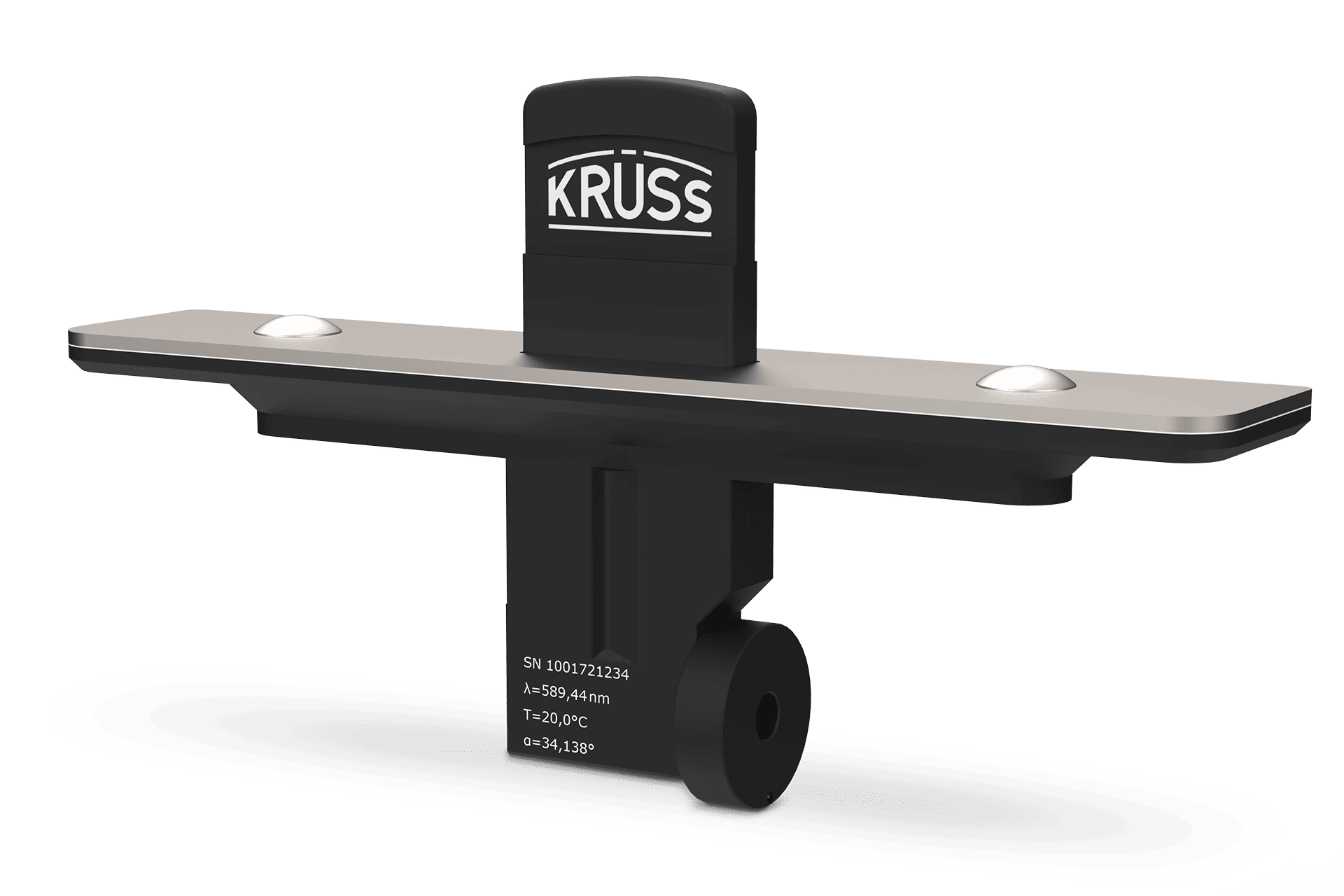

  • Pre-installed scales for optical rotation, specific rotation and international sugar scale. Temperature compensation for quartz and sugar (sucrose) is also pre-installed.
  • Wavelengths available: 589nm (standard, always included), 880nm, 630nm, 546nm, 436nm, 405nm and 365nm.
  • Audit trail and Activatable User Management
  • Built-in computer – No PC needed
  • Complies with FDA 21CFR Part 11, GMP/GLP, USP, EP/Ph.Eur., BP, JP, ISO and other regulatory agencies.

Click on this link to view a YouTube video entitled “Polarimeter P9000 series – how it works”

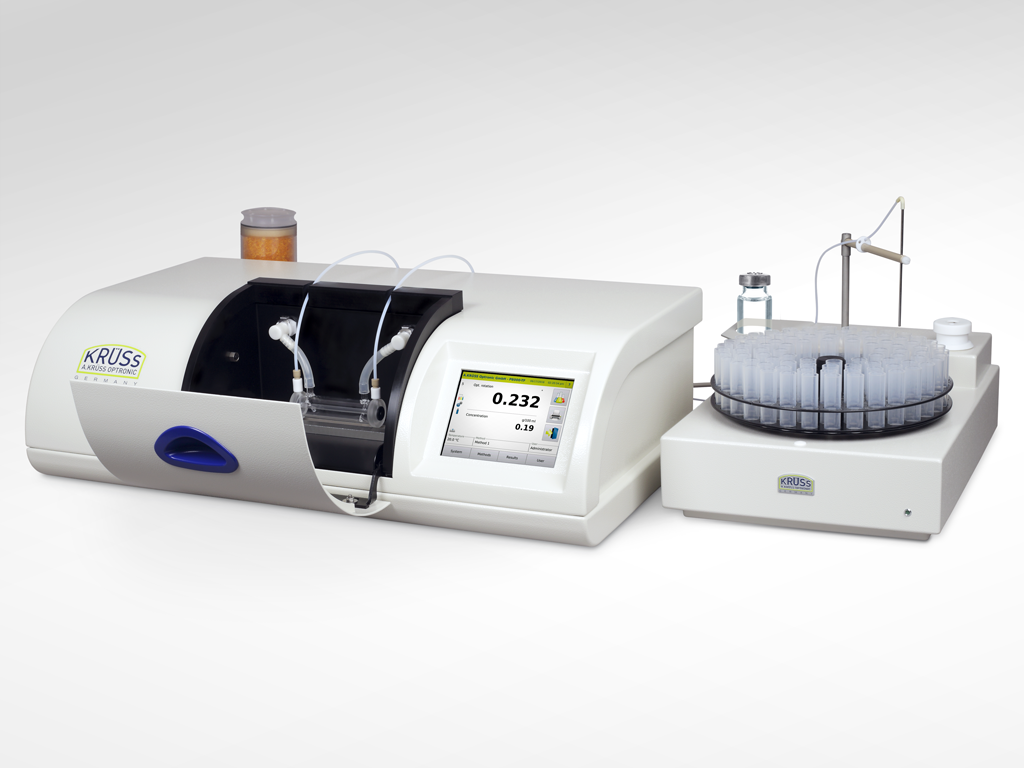

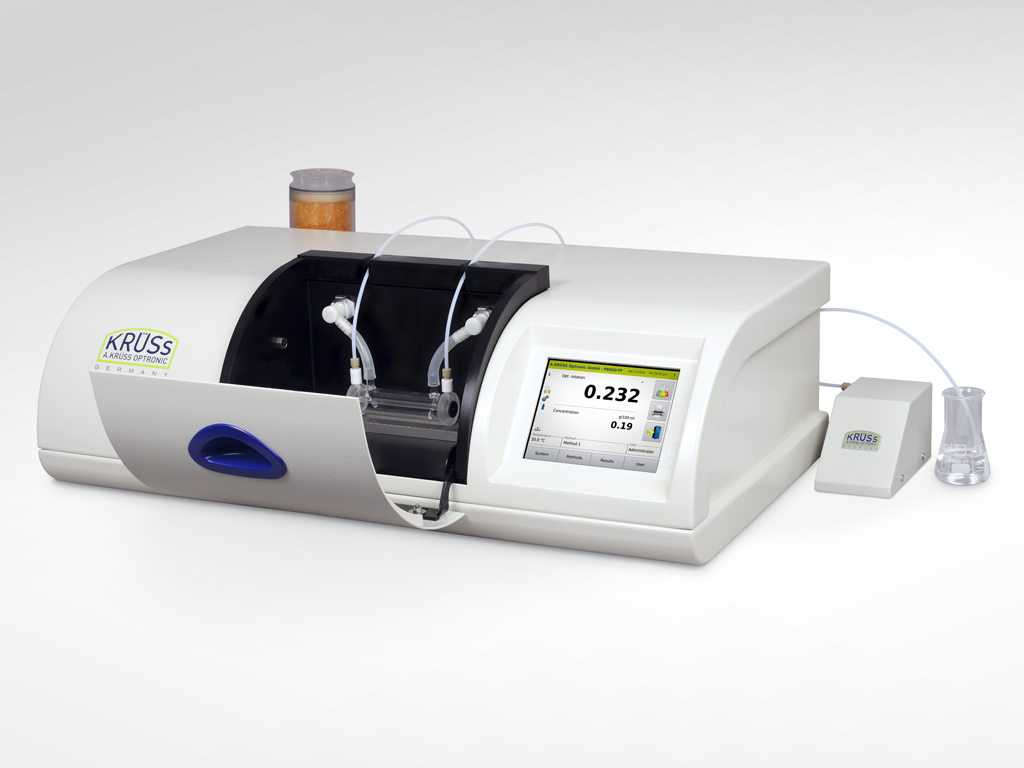

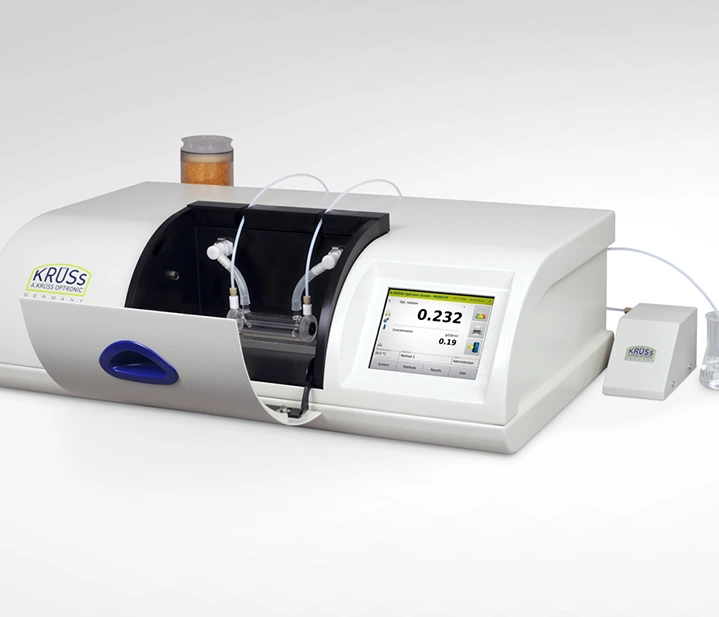

Polarimeter P8000-T with Water Circulated Temperature Control

  • Measurements between 8°C and 35°C, measurement period approx. 1 second

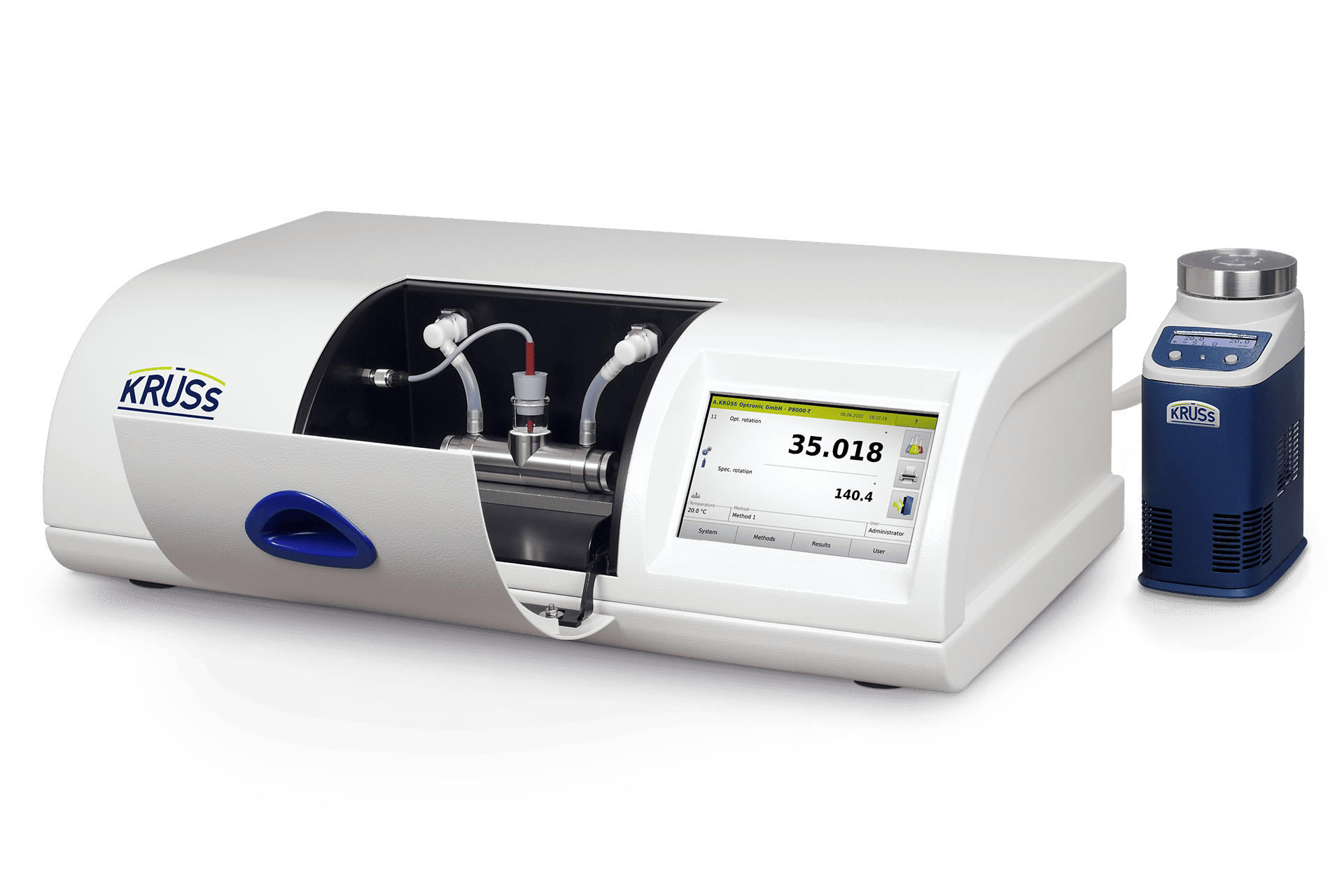

KRÜSS Optronic Polarimeter P8000-T with water circulated temperature control

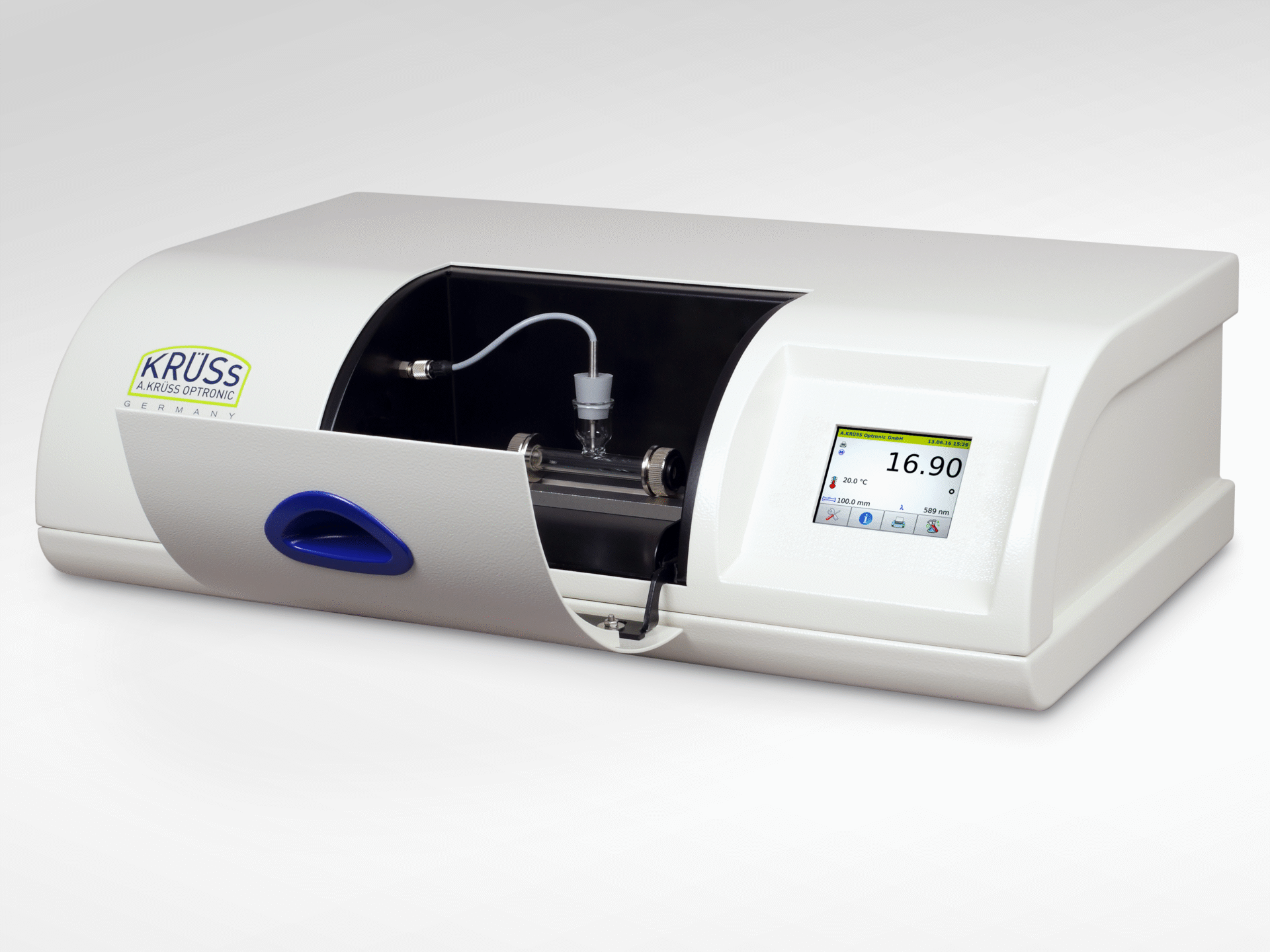

Polarimeter P3000 for Standard Measurement

  • Economical solution for applications for which a measurement accuracy of +/- 0.01° is sufficient
  • Fast, 1 second measurement time like the P8000 Series Polarimeters
  • Reliable temperature compensation following ICUMSA sugar scale guidelines
  • Measured values displayed as optical angle of rotation (°) or on the International Sugar Scale (°Z)
  • Measurement up to an optical density of 3.0
  • Easy to use touchscreen display
  • Compliant with ICUMSA, USP, BP, JP, Ph. Eur, NIST, GLP, ASTM

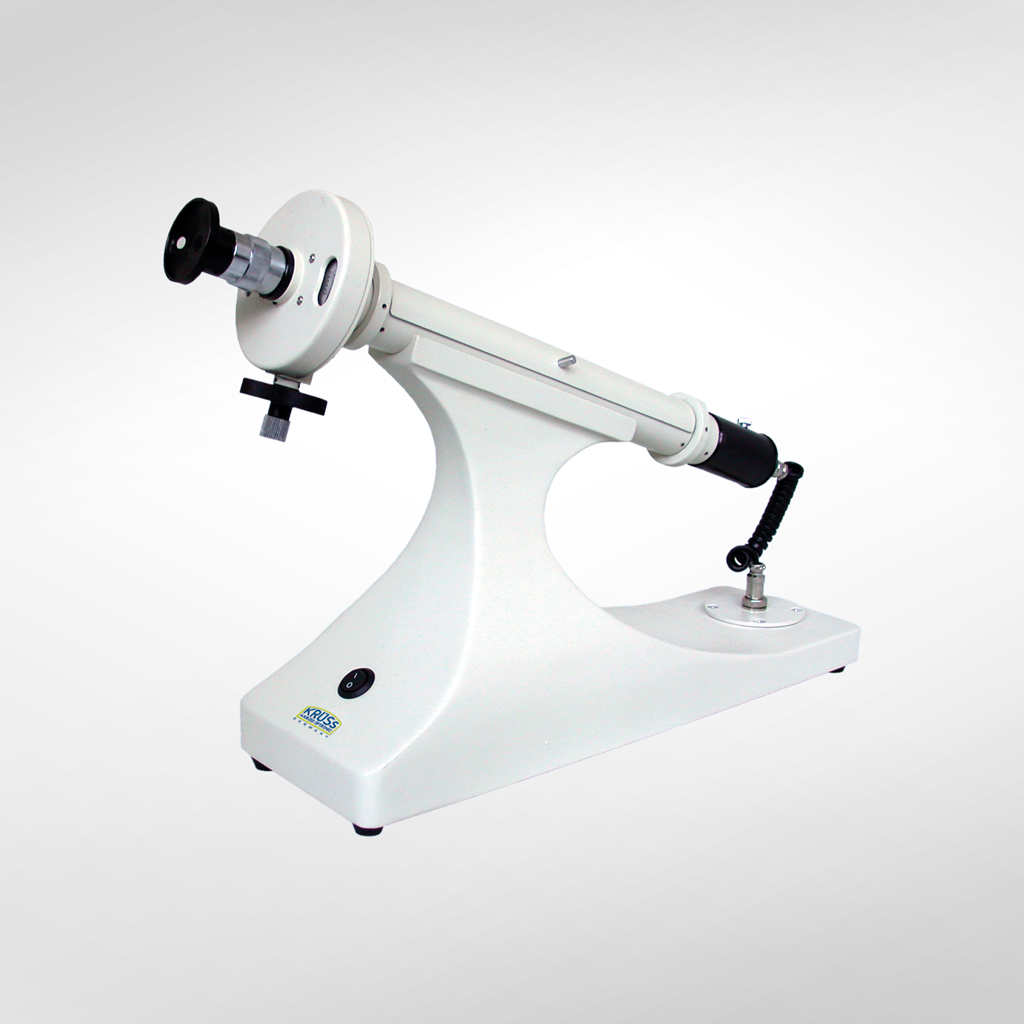

Polarimeter P1000-LED: Best for Teaching & Basic Lab Applications

  • Ideal for basic lab applications and for training in industry and at the college/university.
  • Measures optical rotation according to the half shade principle
  • Measurement results are read through an eyepiece and two noniuses
  • Low maintenance with high performance LED with a life 2000 times that of a standard sodium discharge bulb
  • Includes 100 and 200-mm length measurement tubes with debubbler
