Model SGM-9 Mercury Monitor

Model SGM-9 Portable CEM

Portable Monitor for Hg in Flue Gas

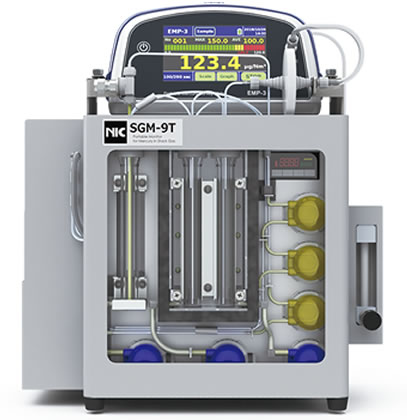

The NIC SGM-9 is a portable, high performance mercury analyzer for short-term monitoring of stack gases and includes speciation capabilities. Compared with the traditional continuous emission mercury monitors (CEMMs), the ultra-compact NIC SGM-9 provides simplified set-up and measurement in the field for Parametric Mercury Testing, Mercury Control Technology Evaluation, and Relative Accuracy Testing Audits (RATA). The compact size of the NIC SGM-9 makes it perfect to install and operate at elevated and space constrained locations near the stack sampling points. Multiple stack gas measurements are possible with one instrument. Real time measurements are achieved allowing for real time research, certification and optimization of combustion systems.

SGM-9 Continuous Emission Monitor Key Features:

  • Real time analysis, data collection & reporting

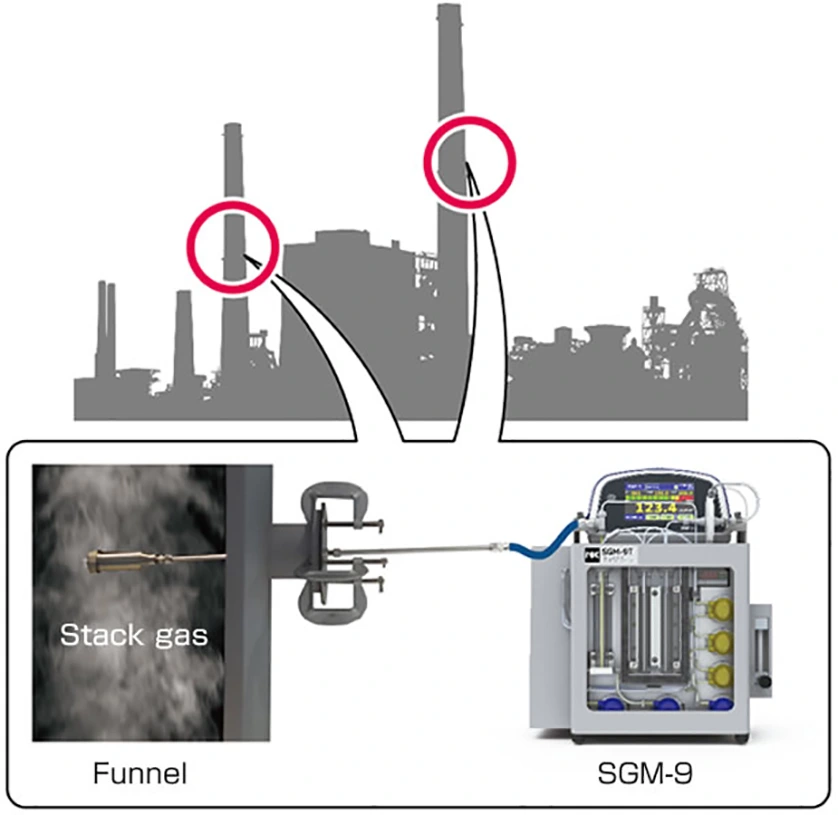

  • Small & compact for elevated and space constrained stack sampling points

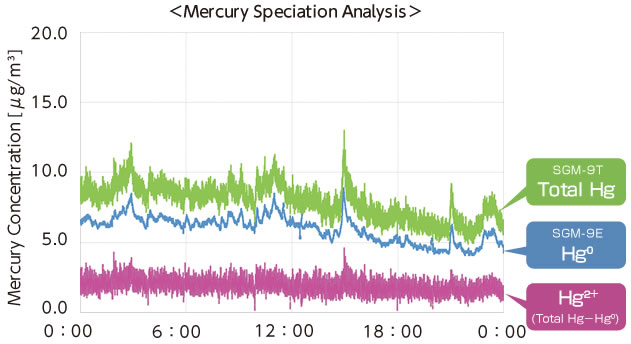

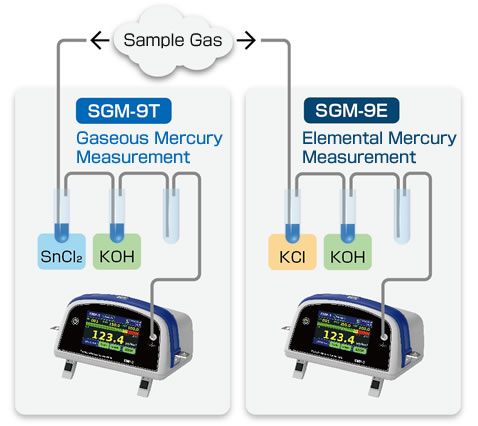

  • Mercury speciation option available
  • Measurement range: 0 – 2,000 ug/m3
  • Measurement principle: Atomic Absorption Spectroscopy
  • Measurement flow rate: ~ 0.3 L/min

Nippon Instruments

Model SGM-9 Mercury Monitor


  • Mercury in Flue Gas Emissions
  • Parametric Mercury Testing
  • Mercury Control Technology Evaluation
  • Relative Accuracy Testing Audits (RATA)
