Model EMP-3 Mercury Monitor

Handheld, Portable Mercury Monitor

The NIC EMP-3 Mercury Monitor is designed for measuring gaseous mercury in work environments. It is compact, light-weight, battery-powered and can be carried virtually anywhere, making it the perfect tool to measure mercury for occupational health and hygiene monitoring applications by OSHA and NIOSH guidelines. The EMP-3 has a lower measurement limit down to 0.1 ug/m3 and a range up to 2,000 ug/m3, and it can measure even higher with the all new dilution option. Measured data is automatically acquired and recorded into a built in data-logger and can be retrieved via PC for data processing. The built-in GPS function automatically stores GPS positions of every measurement, so you no longer need to log your measurement locations. A rechargeable battery can be easily swapped out for external charging. Upgrades allow for versatility into other mercury analysis applications.

EMP-3 Mercury Monitor Key Features:

  • Virtually free of interferences from other gases, moisture, and vapors from household cleaning agents
  • Real-time mercury measurement using Cold Vapor Atomic Absorption Spectrometry (CVAAS)
  • Huge measurement range: 0.1 to 2,000 ug/m3
  • Dilution option, the “Hi-Lutor”, expands upper range by approx. 10X
  • Built-in GPS to record measurement location
  • Internal pressure censor compensates for altitude or other pressure changes
  • Color LCD touch screen
  • Internal memory logs all measured readings as CSV files
  • Portable with rechargeable battery
  • Hands free portability

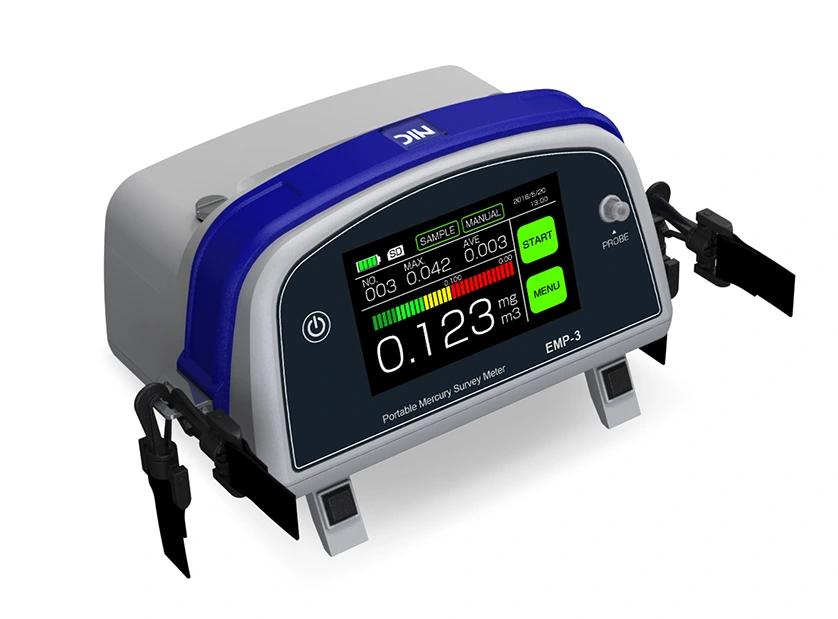

  • Extendable legs for benchtop use
  • Optional Aqua Kit for CVAAS measurements in waters

Nippon Instruments

Model EMP-3 Mercury Monitor

Applications

  • Meets guidelines for WHO, ACGIH, OSHA, NIOSH, USEPA, ATSDR, etc.
  • Fluorescent lamps manufacturing, disposal, re-cycling
  • Emergency response to mercury spill and cleanup monitoring
  • Mercury contamination source surveying and investigation
  • Industrial worker safety and hygiene surveying
  • Facility workplace monitoring
  • Hazardous waste inspection and screening
  • On-site stack, exhaust duck and flue gases screening and measurement
  • Mercury in natural gas screening and measurement
  • On-site mercury in water analysis
